Roller Team Upgrade Single Adjustable AHD/CVBS Camera Unit – a simple upgrade.
With newer head units now supporting AHD, this upgraded camera unit is designed to work with both modern and older systems while also adding features owners have been asking for, including removable distance lines and image flipping.

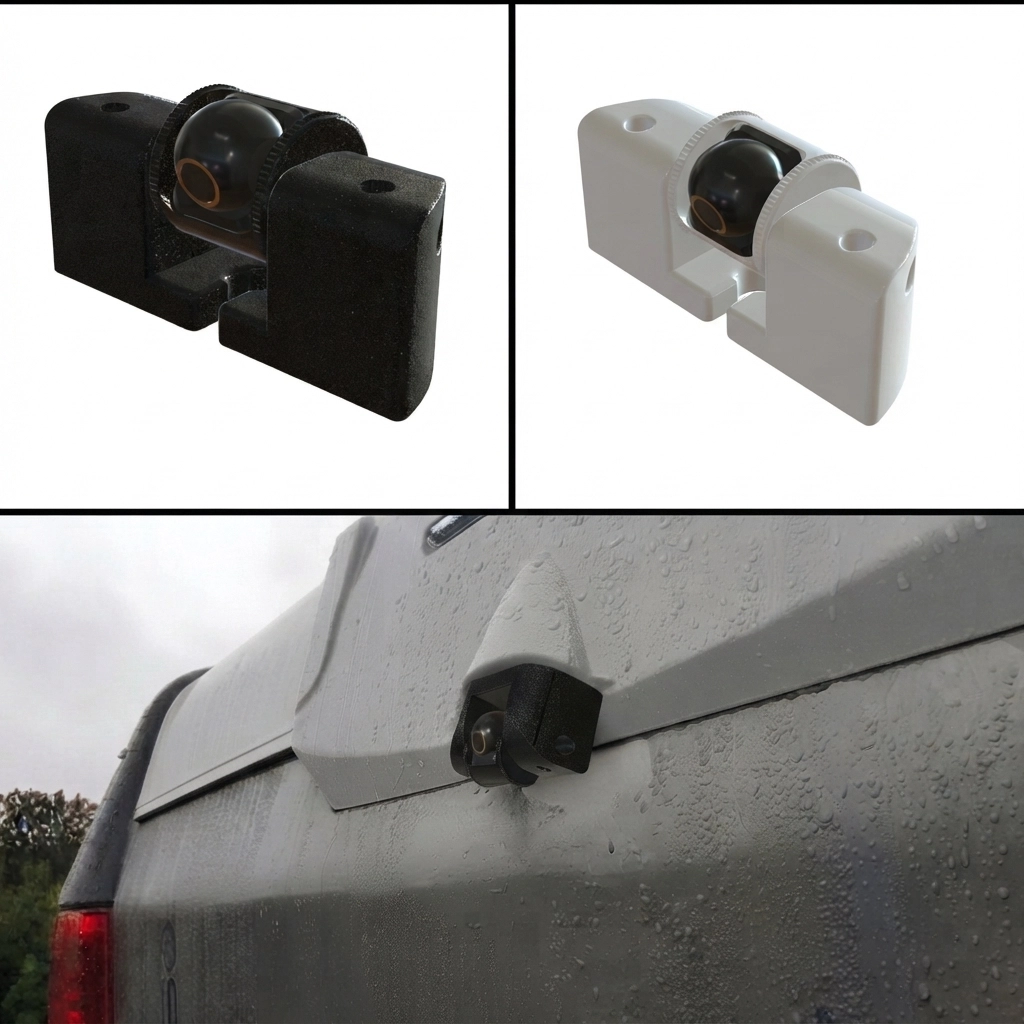

Available in a choice of Black or White, this single adjustable camera unit can be used as a direct replacement for an existing setup or fitted as a completely new installation. It is suitable for motorhomes, caravans, cars, vans, lorries, and almost any vehicle needing high-quality rear vision.
The latest generation camera supports both AHD (Analogue High Definition) and CVBS (standard analogue) video formats, making it compatible with both HD monitors and older display systems. Switching between formats is quick and simple by cutting the appropriate configuration wire, so the camera can match your existing monitor without needing extra converters.
Not supplied by Roller Team but an improved replacement
The camera also allows you to configure:
- Enable or disable reversing guide (distance) lines
- Enable or disable the mirrored image, so the camera can be used either as a reversing camera or as a rear-view camera

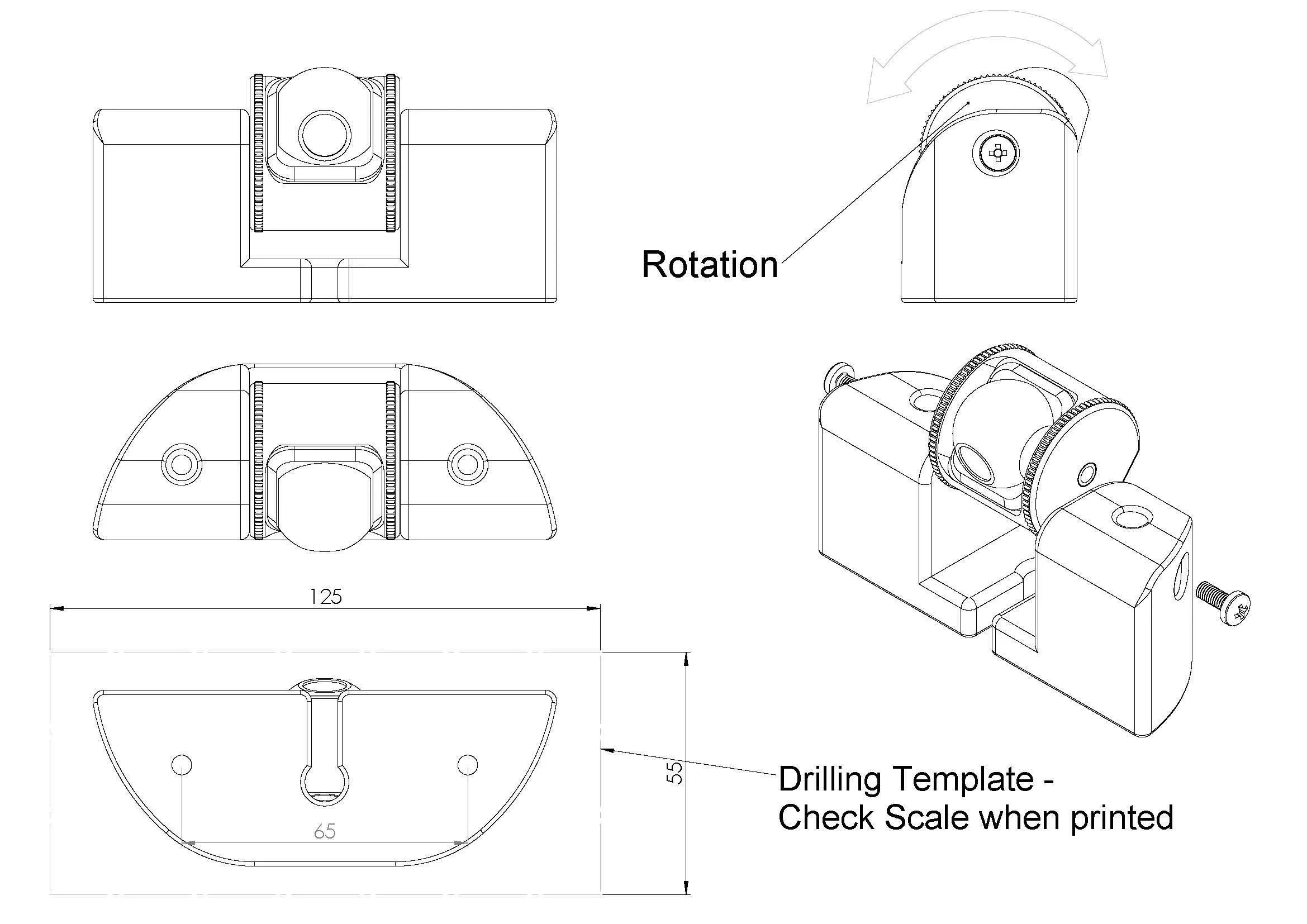

The fully adjustable mounting system provides a wide range of tilt adjustment, allowing you to position the camera exactly where needed. Whether you want a traditional rear-view mirror effect, improved reversing visibility, or better monitoring of the rear area of your motorhome, the camera can be adjusted to suit your setup.
The supplied fisheye camera offers an exceptionally wide viewing angle, helping reduce blind spots and giving you greater confidence when manoeuvring.
Features
- Single camera unit

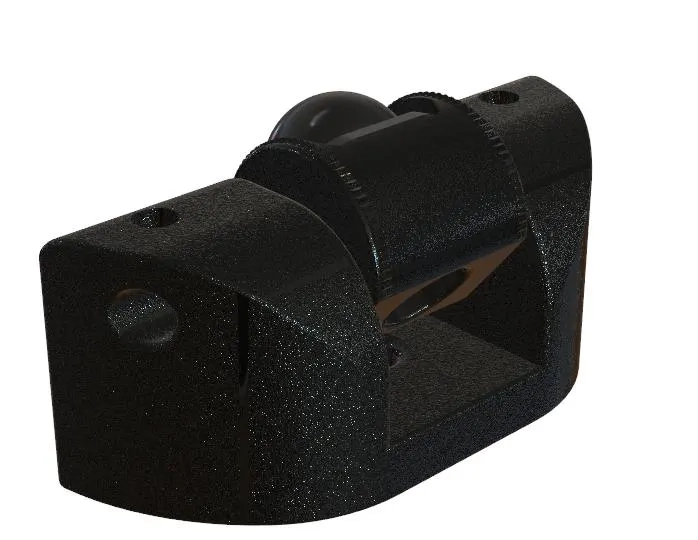

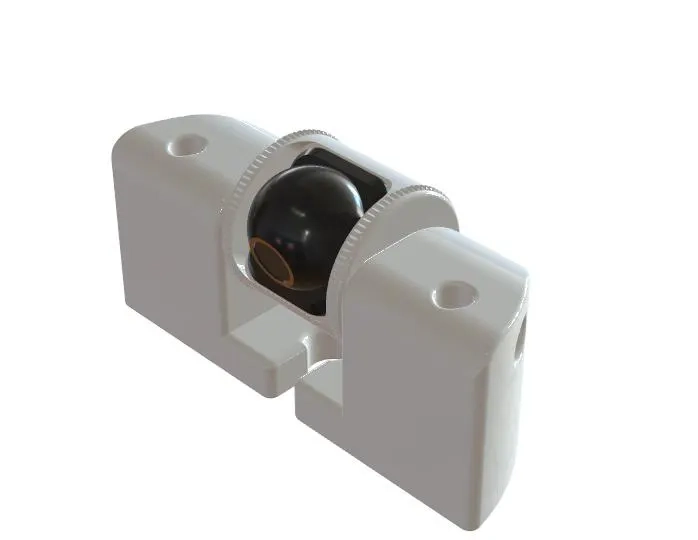

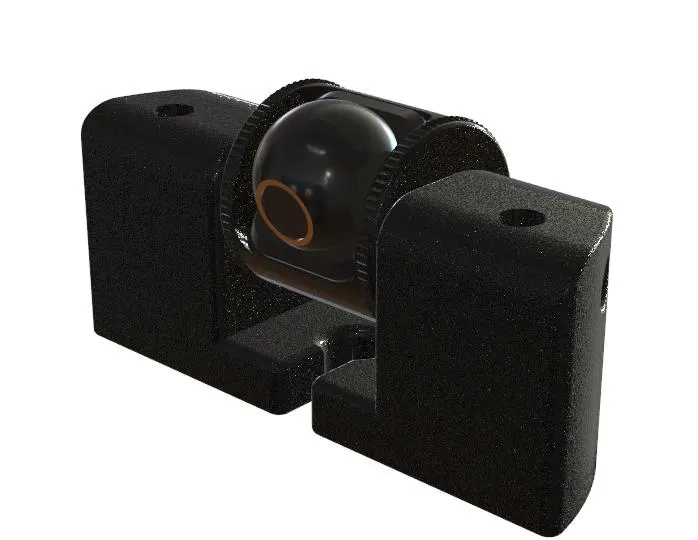

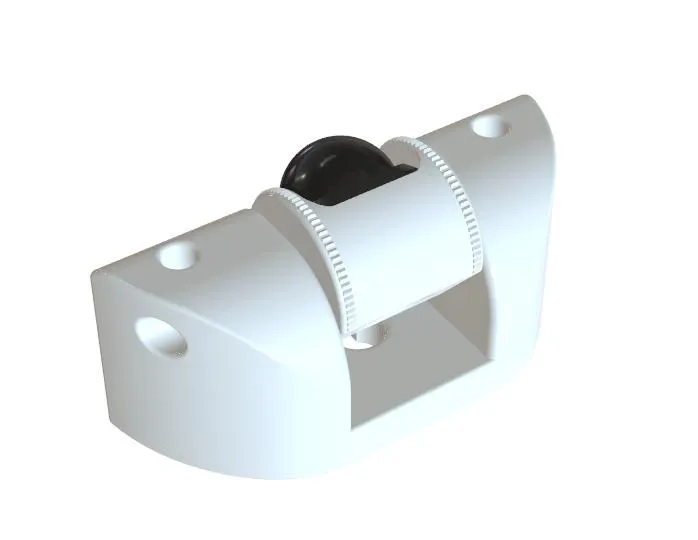

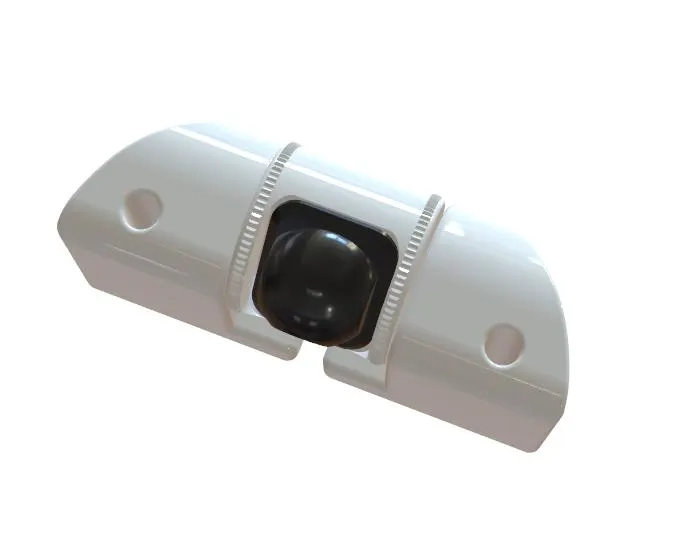

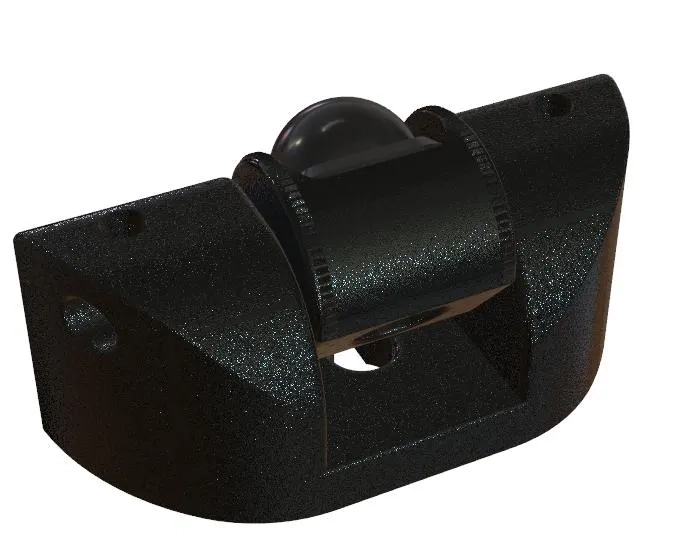

- Choice of Black or White finish
- Compatible with both AHD (HD) and CVBS (standard definition) systems
- Simple wire-cut configuration to select video format
- Optional reversing guide lines
- Optional mirrored image for reversing or rear-view use
- Fully adjustable mounting system with wide tilt adjustment
- Ultra-wide fisheye viewing angle
- Suitable for motorhomes, caravans, cars, vans, lorries, and other vehicles
- Compact footprint: less than 110 mm × 35 mm
Product & Package Details
- Package: Small Parcel
- Item size: 125 mm × 55 mm × 80 mm
- Package size: 300 mm × 100 mm × 100 mm
Please note: Always check that your monitor has the required video input before installation.
Designed by someone with over 15 years of motorhome ownership experience, this product comes from real-world touring use and a practical understanding of what owners actually need.
