Roller Team Upgrade Twin Adjustable AHD/CVBS Camera Unit – a simple upgrade.
With newer head units now supporting AHD, this upgraded camera unit is designed to work with both modern and older systems while also adding features owners have been asking for, including removable distance lines and image flipping.

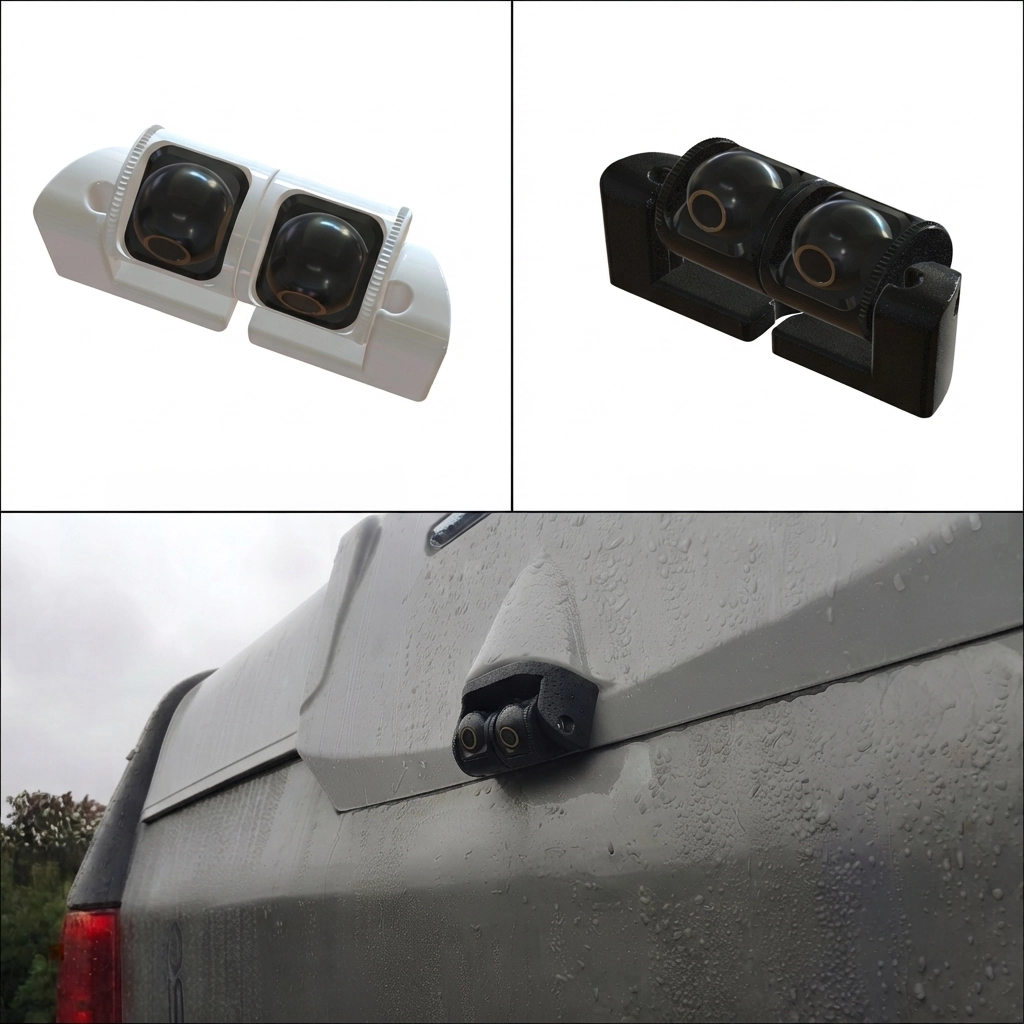

Available in a choice of Black or White, this twin adjustable camera unit can be used as a direct replacement for an existing setup or fitted as a completely new installation. It is suitable for motorhomes, caravans, cars, vans, lorries, and almost any vehicle needing high-quality rear vision.

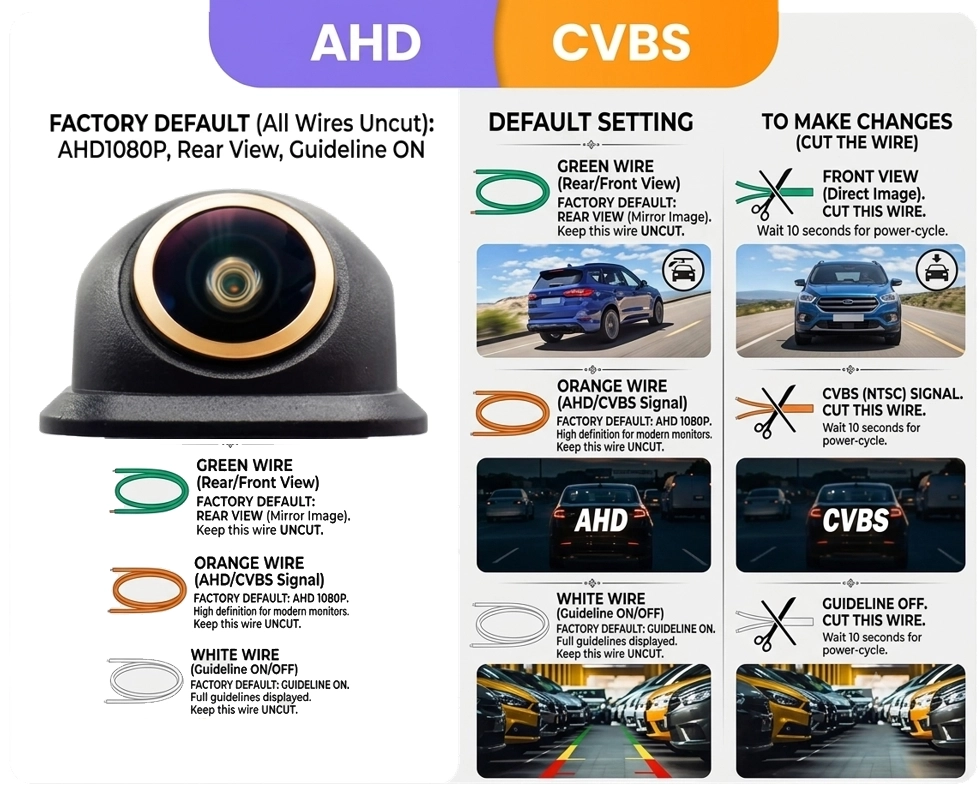

The latest generation cameras support both AHD (Analogue High Definition) and CVBS (standard analogue) video formats, making them compatible with both HD monitors and older display systems. Switching between formats is quick and simple by cutting the appropriate configuration wire, so the cameras can match your existing monitor without needing extra converters.
Not supplied by Roller Team but an improved replacement
Each camera also allows you to configure:
- Enable or disable reversing guide (distance) lines
- Enable or disable the mirrored image, so the camera can be used either as a reversing camera or as a rear-view camera
The fully adjustable mounting system provides a wide range of tilt adjustment, allowing you to position the cameras exactly where needed. Whether you want a traditional rear-view mirror effect, improved reversing visibility, or better monitoring of the rear corners of your motorhome, the cameras can be adjusted to suit your setup.
The supplied fisheye cameras offer an exceptionally wide viewing angle, helping reduce blind spots and giving you greater confidence when manoeuvring.
Features
- Twin camera unit

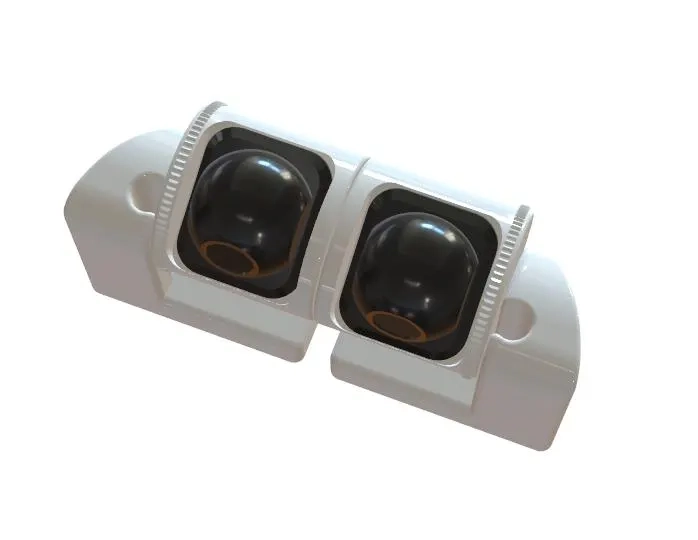

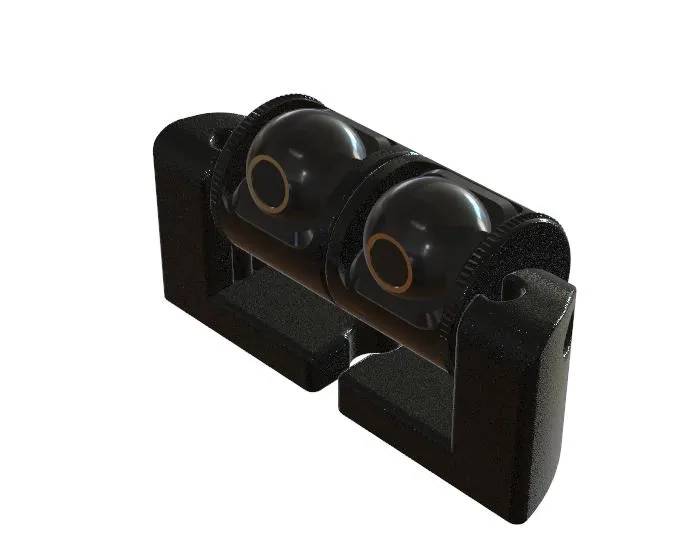

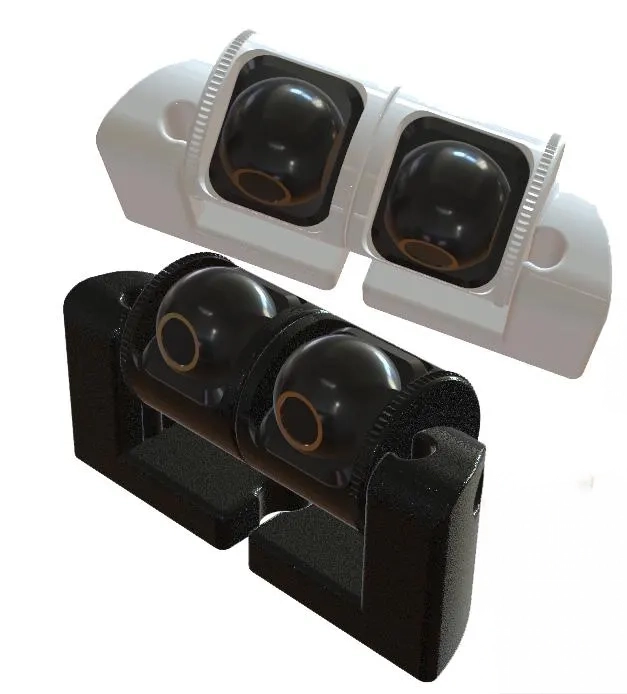

- Choice of Black or White finish
- Compatible with both AHD (HD) and CVBS (standard definition) systems
- Simple wire-cut configuration to select video format
- Optional reversing guide lines
- Optional mirrored image for reversing or rear-view use
- Fully adjustable mounting system with wide tilt adjustment
- Ultra-wide fisheye viewing angle
- Suitable for motorhomes, caravans, cars, vans, lorries, and other vehicles

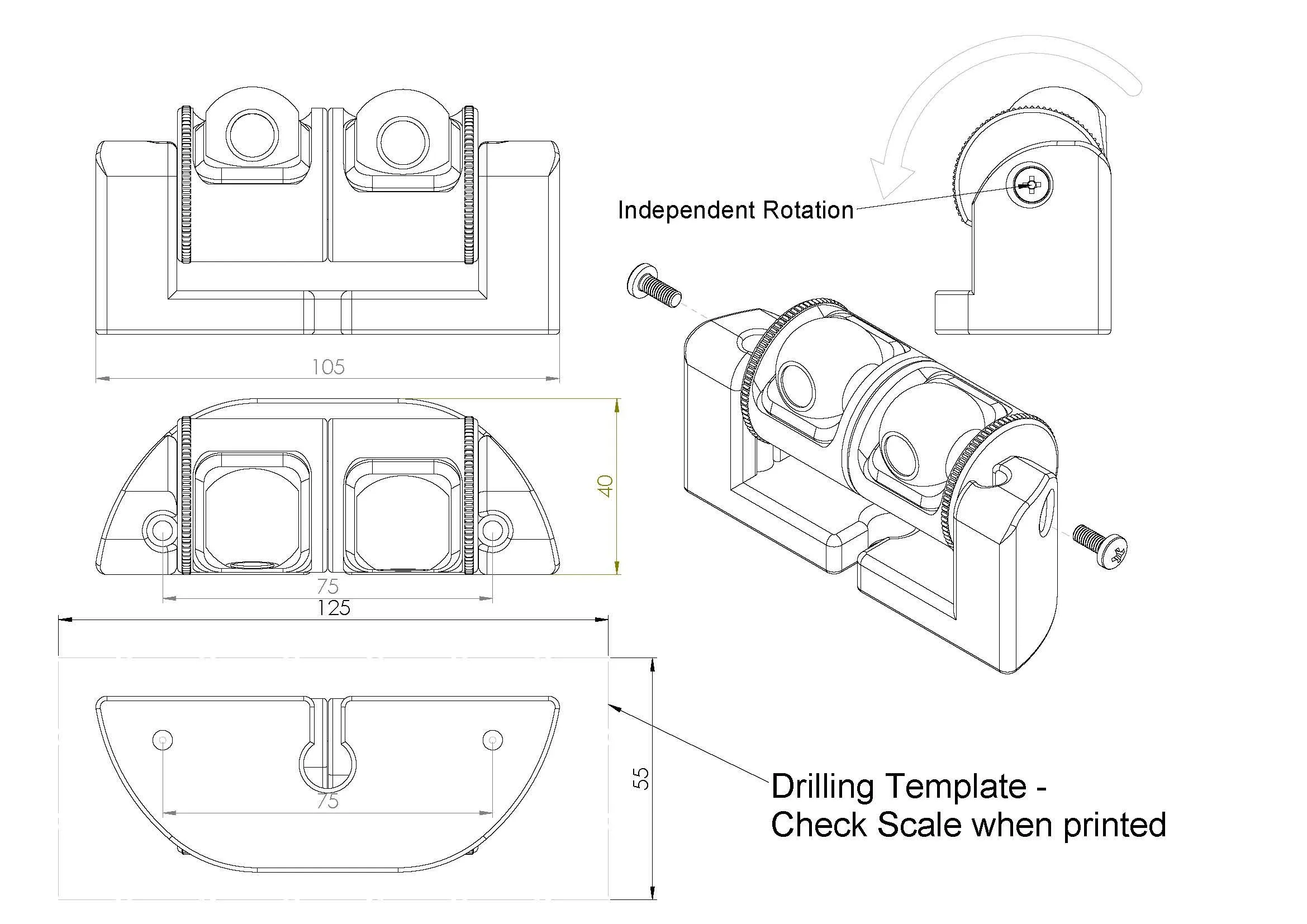

- Compact footprint: less than 110 mm × 35 mm
Product & Package Details
- Package: Small Parcel
- Item size: 125 mm × 55 mm × 80 mm
- Package size: 300 mm × 100 mm × 100 mm
Please note: Always check that your monitor has the required number of video inputs before installation. For twin camera installations, ensure at least one input provides a permanent live camera feed if you intend to use one camera as a rear-view mirror while driving.
Designed by someone with over 15 years of motorhome ownership experience, this product comes from real-world touring use and a practical understanding of what owners actually need.
